Panoptix LiveScope™ System

$2,999.00

Panoptix LiveScope™ System

SKU: 010-02233-00 Category:


CLEARLY THE MOST AMAZING SONAR TECHNOLOGY EVER

You’ve never fished like this before, with a view below your boat so clear you even see your lure as you retrieve it.



Who wouldn’t want stunning, real-time imagery below and around their boat?



Up to 200’ down. Up to 200’ away. That’s an impressive view for real-time sonar.



Even if the waters are rough, this system stabilizes the view on your chartplotter screen.



No matter your setup, the simple plug-and-play connector makes install a breeze.

Clear sonar. Real time.

LIVESCOPE™ FORWARD SONAR

Scout and fish out ahead of your cast with live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat.

EXCELLENT RANGE

Not only can you see crystal-clear imagery around your boat, you can also see at a distance of up to 200’ in both modes — even while your boat is stationary.

IMAGE STABILIZATION

Attitude Heading Reference System stabilizes the sonar view on your chartplotter screen, even in rough conditions.

EASILY CONNECT TO YOUR SYSTEM

Seamlessly integrate this system with your compatible Garmin chartplotter using the simple plug-and-play Garmin Marine Network connector.

PHYSICAL DIMENSIONS

GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

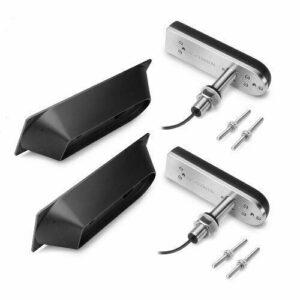

LVS32-TH transducer without fairing block: 9.6” x 1.8” x 5.4” (24.4 x 4.6 x 13.7 cm)

LVS32-TH transducer with fairing block: 9.6” x 3.4” x 8.1” (24.4 x 8.6 x 20.6 cm)

WEIGHT

GLS 10 sonar black box: 4.3 lbs (2.0 kg);

LVS32-TH transducer without fairing block: 4.4 lbs (2.0 kg)

LVS32-TH transducer with fairing block: 5.0 lbs (2.3 kg)

WATER RATINGIPX7
TRANSMIT POWER500 W
GARMIN MARINE NETWORK™ PORTS

1 (small connector)

TEMPERATURE RANGE

GLS 10 Black Box: Operating: -15 C to 70 C

Panoptix LiveScope LVS12 Transducer: Operating: 0 C to 40 C

Sonar Features & Specifications

FREQUENCIES SUPPORTED530 – 1,100 kHz
MAXIMUM DEPTHForward: 200’ (61.0 m)

Electrical

POWER INPUT10-32 V
POWER USAGE21 W typical, 58 W max
FUSE7.5 A
  • Beamwidth: 20° x 135°
  • Transducer cable length: 20 ft.
  • Transducer number of pins: 21
